Intraoral Scanner Connection

The hardware components of the V3 Pro intraoral scanner include: the handle, the Type C connection cable, and the base. These parts must be connected for the scanner to function properly.

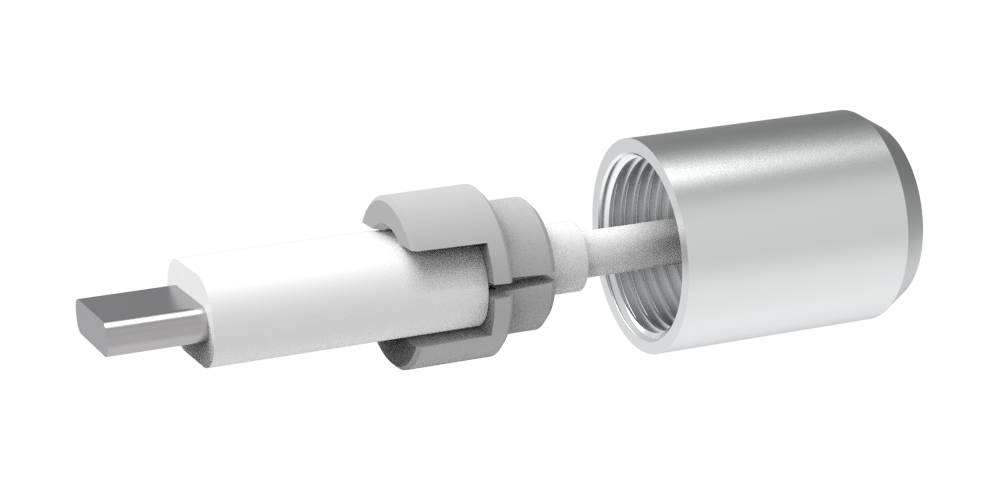

To connect the scanner handle with the Type C cable: First, insert the cable into the Type-C port at the back of the handle. Adjust the tail cap position, then screw it into the handle’s threaded end. When tightening, make sure the tail ring is aligned properly to avoid damaging the threads.

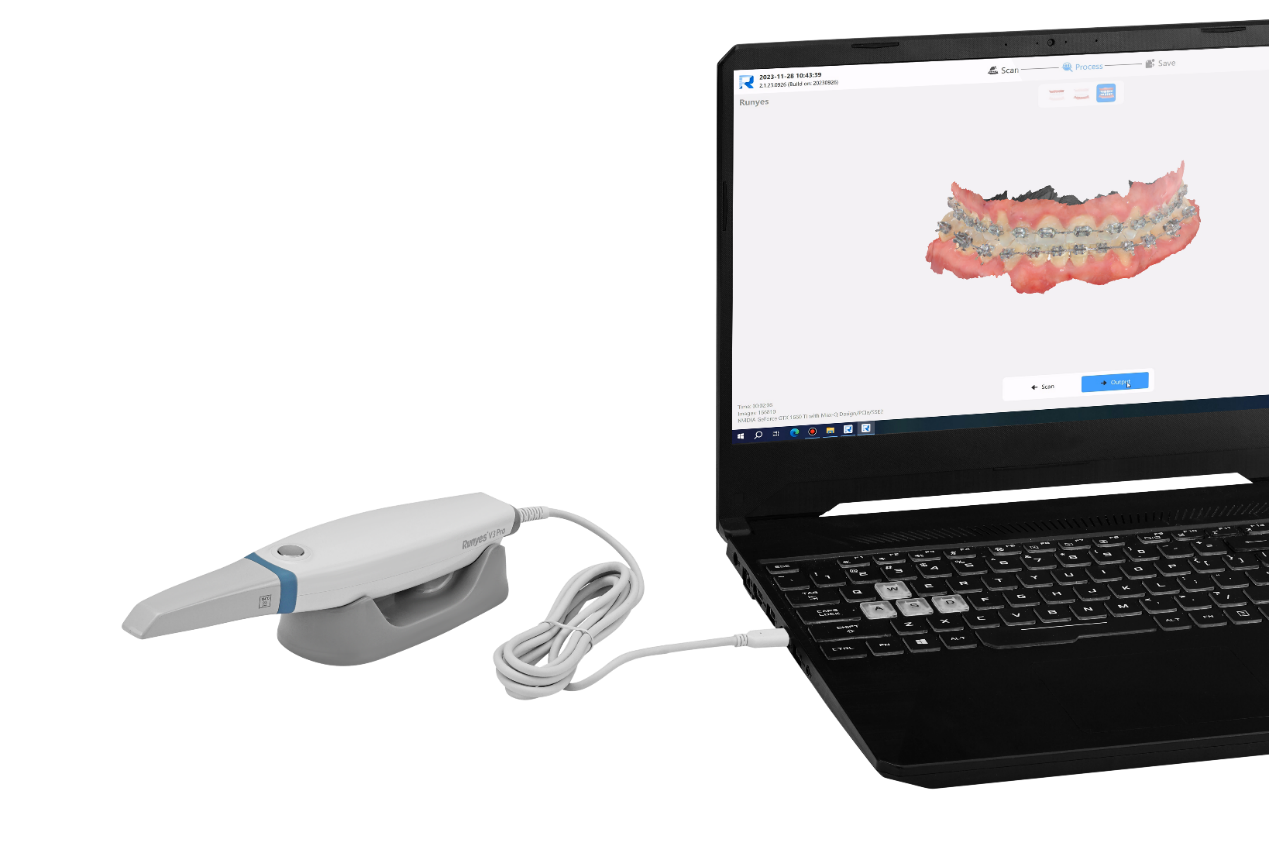

Insert the Type C cable into the Type C port on the computer, then place the handle onto the base to complete the connection of the intraoral scanner.
Note: If the computer does not have a Type C port, you can use the Type C to USB adapter included in the packaging to establish the connection.
