Data Export

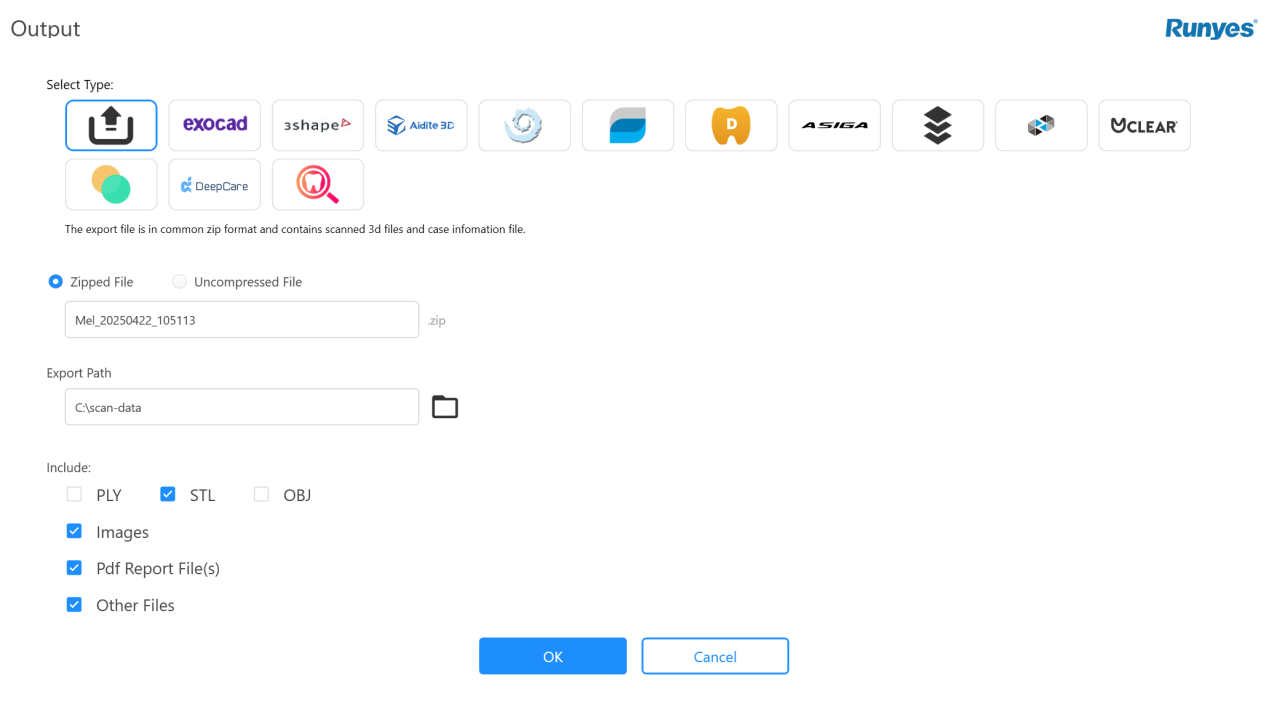

After the scanning process is completed, users can export the scanning results in various formats, making it easy to import the data into different design software.
Alt Text

Alt Text
The available export formats are:

  • Zip Archive: Contains both the scanned results and case information files. Multiple result files such as PLY, STL, and OBJ can be selected. Note: Do not double-click the zip file to view the contents. Extract the files first to access them.
  • ExoCAD Format: Includes project files and scanning results that can be directly imported into ExoCAD software.
  • 3Shape Format: The exported zip file contains both scanning result files and case information files. PLY and STL formats are supported.
  • Aidite 3D Format: Includes scanning result files. Aidite 3D software will automatically load the scanned data.
  • BlueSkyPlan Format: Includes project files and scanning results that can be directly imported into BlueSkyPlan software.
  • DentalWing Format: Includes project files and scanning results that can be directly imported into DentalWing software.
  • EZCAD Format: Includes project files and scanning results that can be directly imported into EZCAD software.
  • ASIGA Format: Includes scanning result files. ASIGA software will automatically load the scanning data.
  • r3ds Format: Includes project files, scanning results, and data files. These files can be transferred to another device via export/import.
  • UNIZ Format: The exported file is in UNIZ format, containing scanning results. UNIZ Dental software can directly import the scanning data.
  • Uclear Format: The exported zip file includes scanning result STL files and screenshot files. Uclear software can directly import the scanned data.
  • Clinux CAD Format: Includes scanning result files. Clinux CAD software will automatically load the scanning data.
  • DeepCare Format: Includes scanning result files. DeepCare software will automatically load the scanning data.
  • BiteFinder Format: Includes scanning result files. BiteFinder software will automatically load the scanning data.
