Scanning Tips

In the scanning interface, the following auxiliary information will help indicate the current scanning status:
Scanning Status:
Once in scanning mode, a status prompt will appear in the center of the software interface, indicating the current matching status. If consecutive scans match successfully, the prompt will be green. If a match fails, the prompt will turn red.

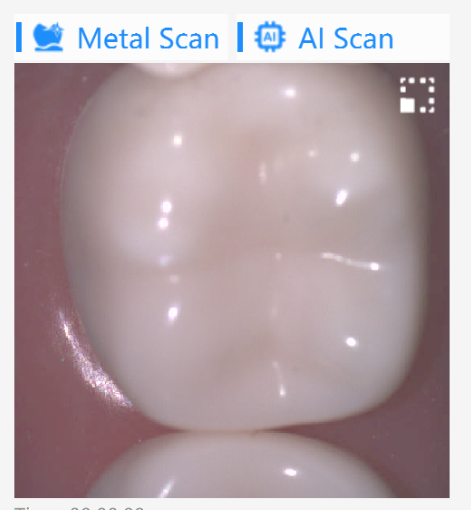

Scanning mode:
When AI Smart Scanning or Metal Mode is enabled, the current mode will be displayed above the video window.

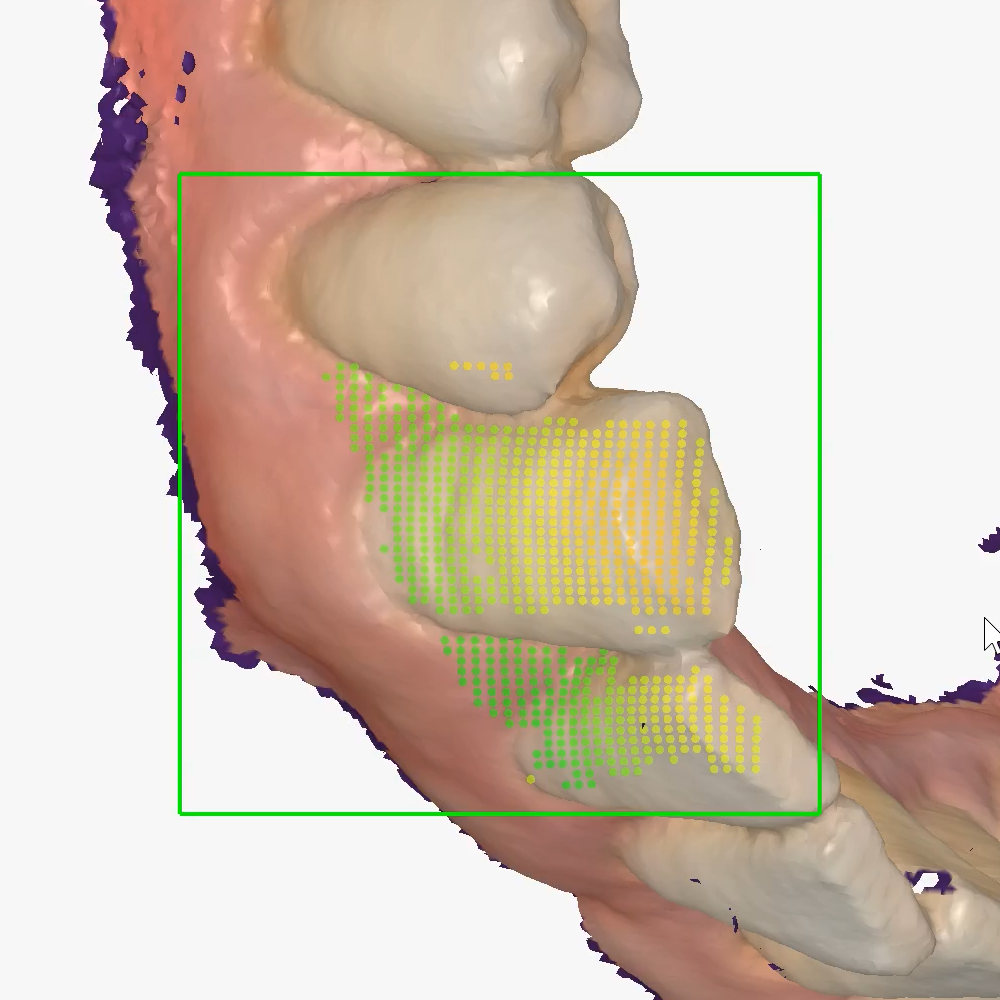

Data Quality Reminder:
This includes two types: data quality and data missing. If the data quality feature is enabled in the software settings, areas with poor data quality will be highlighted in blue or purple during scanning. These areas may be deleted during the optimization process. If there is excessive data on the buccal or lingual side but missing occlusal data, a yellow arrow will appear as a reminder. Additional scans are needed in the arrow-marked area to collect sufficient data.
